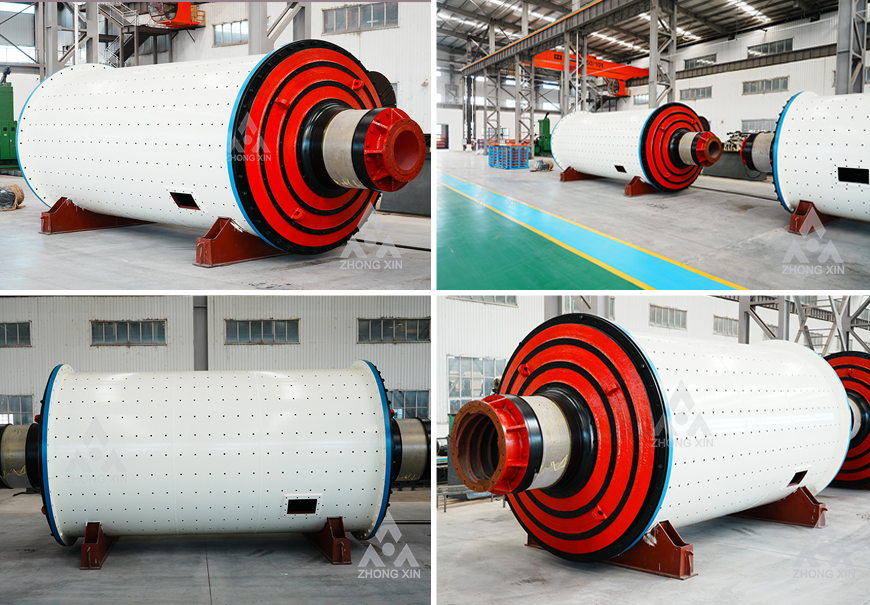

Ball mill

Type：mineral processing equipment

Input Size：≤25mm

Processed Materials：Metallic ores, non-metallic ores, chemical materials and food raw materials

Applications：Mineral processing, building materials and chemical industries

Capacity：0.5 tons to 100 tons/hour

Whatsapp/Wechat:+86-13676922906 Email:sales@zxcrusher.com

Introduction
Features
Working
Specifications

Ball mill is a device that grinds and pulverizes materials after they are crushed.Ball mill is widely used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics and other production industries to grind various ores and other grindable materials in dry or wet manner.

1. Energy saving: The matching of the drive and grinding energy consumption can save energy.

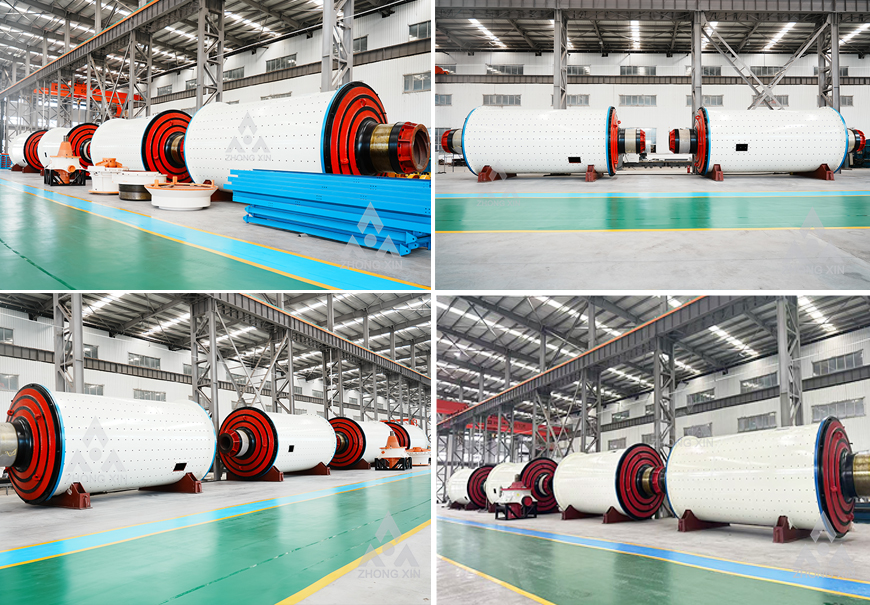

Ball mill

2. Flexible design of the discharge section: The discharge port is reasonably designed, and customers can select the iron remover according to their needs.

Ball mill

3. Rotating section: The cylinder, lining, medium, partition plate, and discharge grate plate of the rotating section are all composed of high-quality original parts.

4. Large feed volume of the feeding section: Reasonable feed port design expands the feed volume.

Ball mill

5. High grinding efficiency and good lining quality

6. Adopt closed system to reduce dust

Number	Model	Cylinder diameter（mm）	Cylinder length（mm）	Cylinder effective volume（m³）	Maximum ball loading（t）	Operating speed（r/min）	Main motor power（kW）
Number	Model	Cylinder diameter（mm）	Cylinder length（mm）	Cylinder effective volume（m³）	Maximum ball loading（t）	Operating speed（r/min）	Main motor power（kW）
1	MQ-09×□	900	900~1800	0.45~0.9	0.96~1.9	34.8~39.5	7.5~15
2	MQ-12×□	1200	1200~2400	1.1~2.2	2.4~4.7	29.8~33.9	22~45
3	MQ-15×□	1500	1500~3000	2.2~4.5	4.7~9.7	26.5~30.1	55~90
4	MQ-21×□	2100	2200~4000	7~12	15~27	22.3~25.3	140~250
5	MQ-24×□	2400	2400~4500	10~18	21~39	20.8~23.6	210~355
6	MQ-27×□	2700	2100~5400	11~28	23~59	19.6~22.2	260~630
7	MQ-32×□	3200	3000~6400	22~47	46~98	17.9~20.4	500~1120
8	MQ-36×□	3600	3900~7000	36~64	75~135	16.9~19.2	1000~1800

Ball mill
